Picture-in-Picture (PiP) Integration

Prerequisites

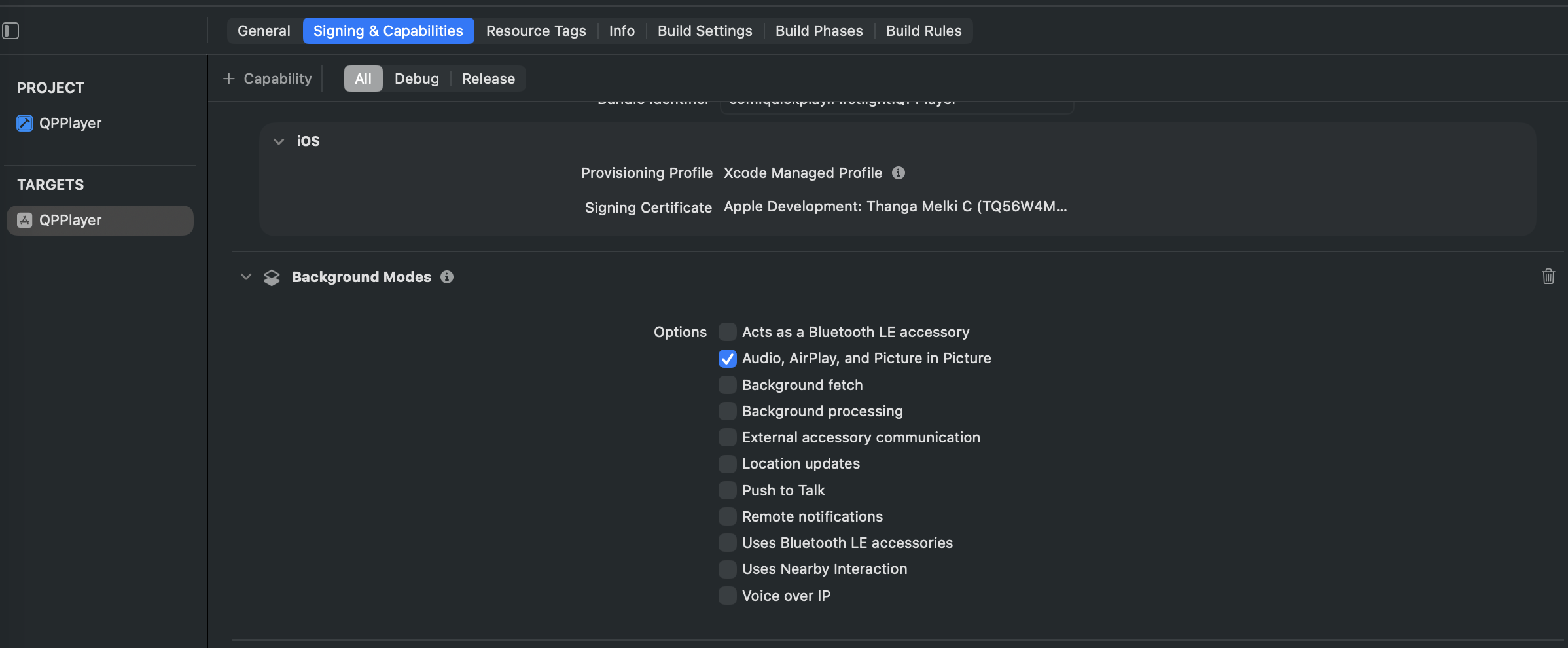

Before using any PiP APIs, enable the required capability in Xcode.

1. Open your project in Xcode.
2. Select your app target.
3. Go to Signing & Capabilities.
4. Add the Background Modes capability.
5. Enable Audio, AirPlay, and Picture in Picture.

Background Mode

Enable PiP

Set this preference before calling player.play():

player.set(preferences: [.shouldSupportPIP(true)])

---

Start / Stop PiP

player.startPictureInPicture()   // starts PiP window
player.stopPictureInPicture()    // stops PiP window

Check availability before calling:

Property	Description
isPictureInPictureSupported	Device-level check — hardware and OS support PiP
isPicureInPicturePossible	Player-level check — player is in a state that allows PiP
isPictureInPictureActive	true while the PiP window is visible

// To check device supports PiP, if it supports start PiP.

if player.isPictureInPictureSupported,
   player.isPicureInPicturePossible {   // player is ready to enter PiP
    player.startPictureInPicture()
}

// Check if PiP is currently active and stop pip

if player.isPictureInPictureActive {
    player.stopPictureInPicture()
}

---

Delegate Callbacks

Available from @available(tvOS 14.0, *).

Callback	When It Is Called
playerDidStartPictureInPicture	PiP window has appeared
playerDidStopPictureInPicture	PiP window was dismissed
playerDidFailToStartPictureInPicture	PiP failed to launch
restoreUserInterfaceForPictureInPictureStopWithCompletionHandler	User tapped the expand button on the PiP window

func playerDidStartPictureInPicture() {
    // PiP window is now visible
    // tvOS: dismiss the player screen here to allow the user to select next content
}

func playerDidStopPictureInPicture() {
    // PiP window was closed
    // tvOS: if the player was not restored, clean up the player to release resources
}

func playerDidFailToStartPictureInPicture(with error: Error) {
    // PiP failed to start — handle error
}

func restoreUserInterfaceForPictureInPictureStopWithCompletionHandler(
    completionHandler: @escaping (Bool) -> Void
) {
    // User tapped expand on PiP window — re-present your player UI here, then call:
    // tvOS: if another player is already on screen, dismiss it first then re-present this player (swap)
    // tvOS: if no player is on screen, directly present this player (restore)
    completionHandler(true)
}

---

Disable Scrubbing in PiP

For live streams and ad playback, disable scrubbing in the PiP window:

player.requiresLinearPlayback = true

---

CSAI Ads

Pass shouldSupportPIP when creating the ad player:

let adPlayer = FLAdvertisingGoogleIMAFactory.adPlayer(
    contentPlayer: player,
    request: adRequest,
    playerViewController: vc,
    shouldSupportPIP: true   // set false to disable PiP during ads
)

---

Automatic PiP — Inline Playback (iOS 14.2+)

Triggers PiP automatically when the user leaves the app:

player.canStartPictureInPictureAutomaticallyFromInline = true
